Steamboat Pauline - 2011
nation:
20.02.2011
length
5.50 m
18'-1"
beam
1.65 m
5'-5"
draft
0.60 m
2'-0"
engine: Stuart 6A
63.5 + 101.6 x 76.2
2 1/2" + 4" x 3"
boiler: Vertical Fire Tube, max. 10.0 bar/ 145psi
Prop: 480 x 700 mm / 18.9 x 27.6" > Ratio = 1 : 1.46
Picture 1
Hallo, Rainer!
Hier ein paar Bilder meiner "Pauline". Die wichtigsten Daten:
Baujahr: 2004-2006
Länge: 5,5 m
Breite: 1,65 m
Tiefgang: 0,6 m
Picture 2

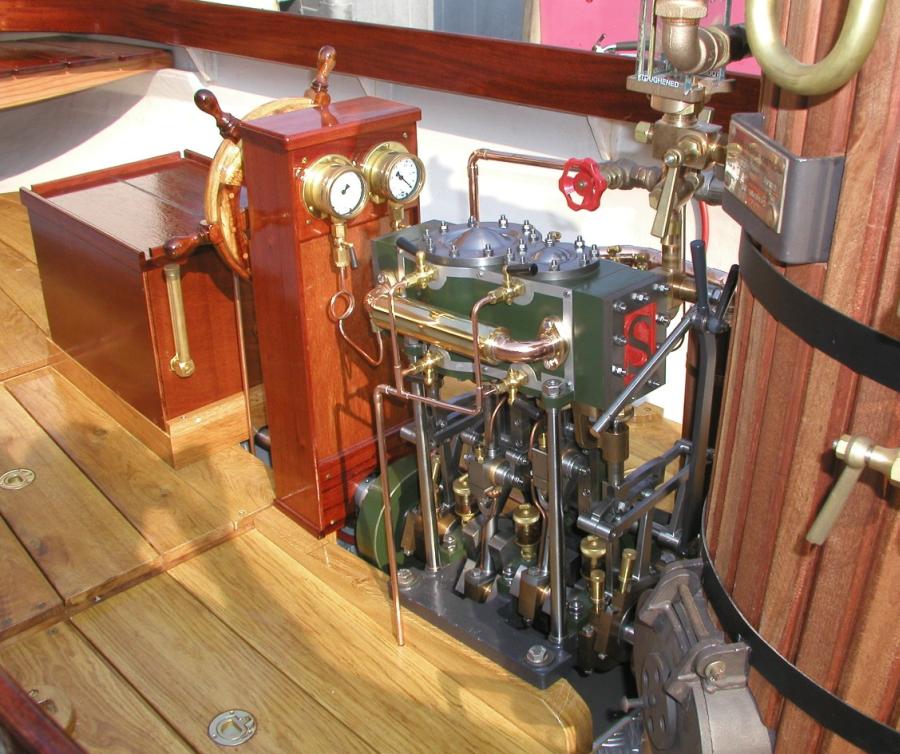

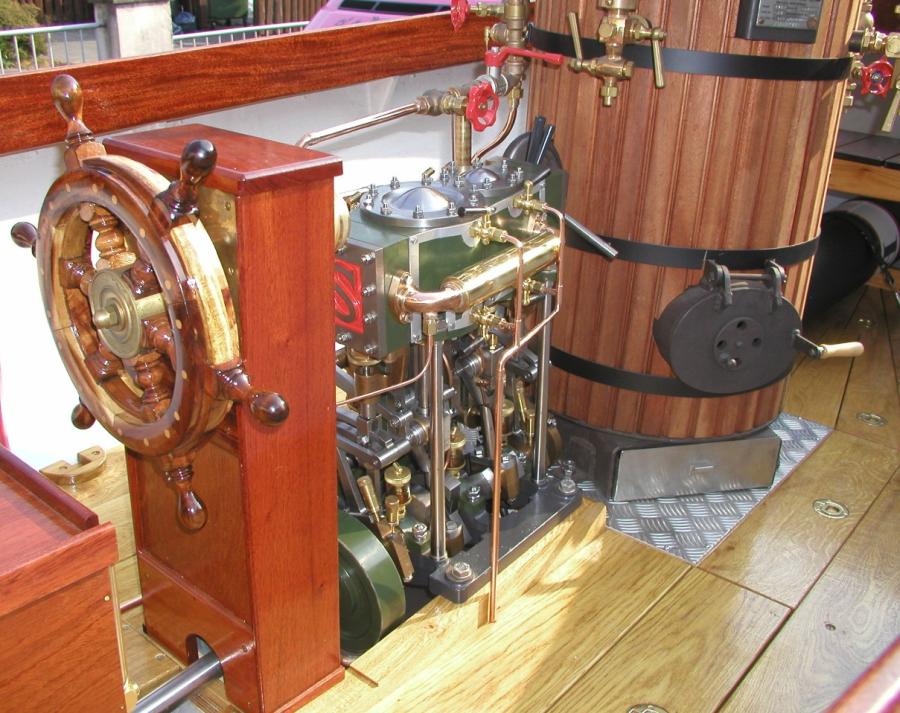

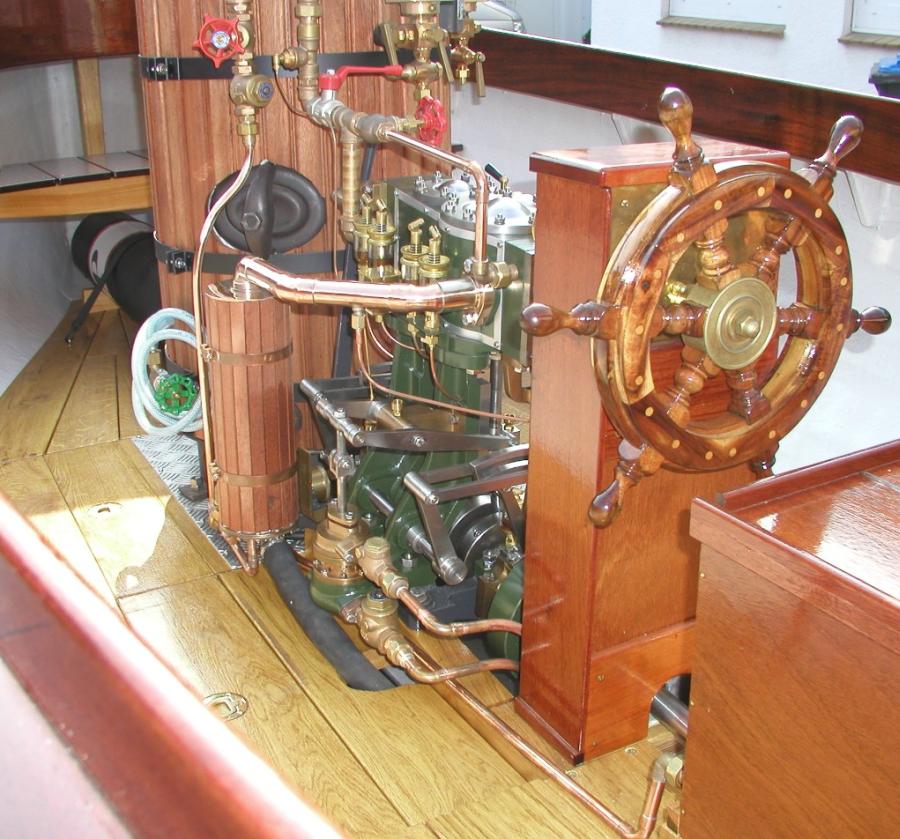

Maschine: STUART 6A
Bohrung: 2 1/2"/4"
Hub: 3"
Picture 3
Kessel: Rauchrohrkessel (Knetsch)
Heizfläe: 2,86 m²br>
Inhalt: 51 Liter
Betriebsdruck: 10 bar
Picture 4
Picture 5
Picture 6

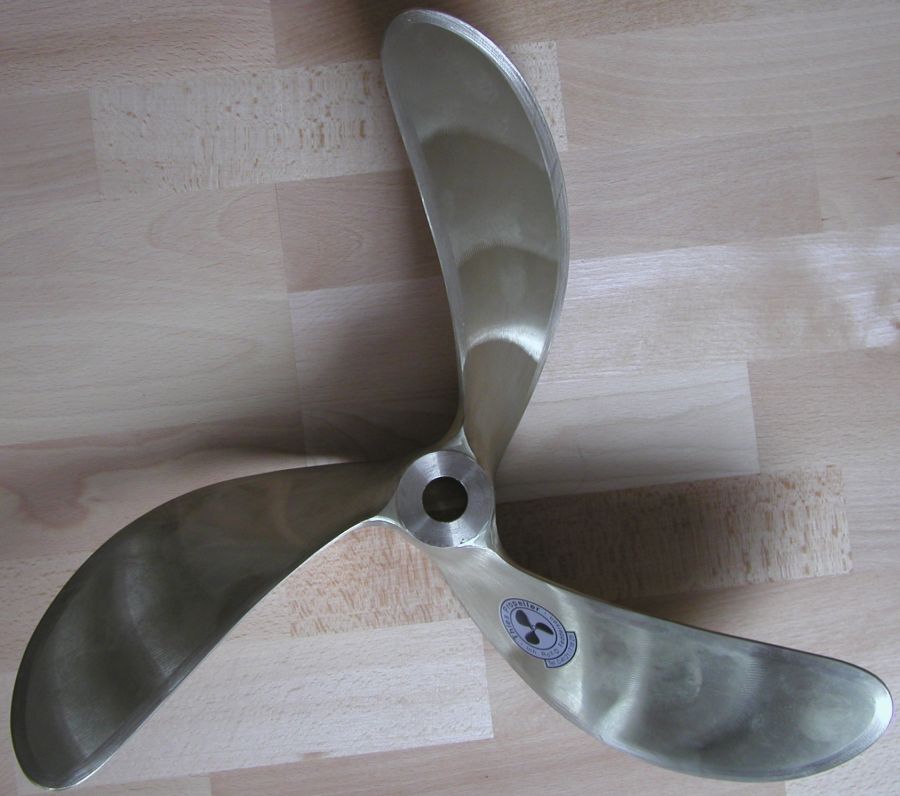

Propeller: Durchmesser 48 cm (19"), Steigung 70 cm (27,5")
Rumpf: Qviding aus Schweden (Lars Qvist/Bernt Breding)
Heimathafen: Kiel
Picture 7

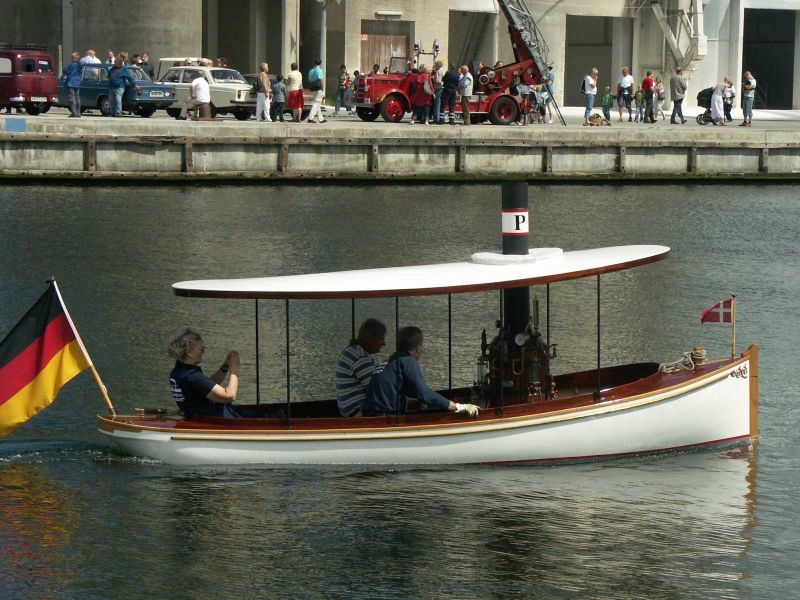

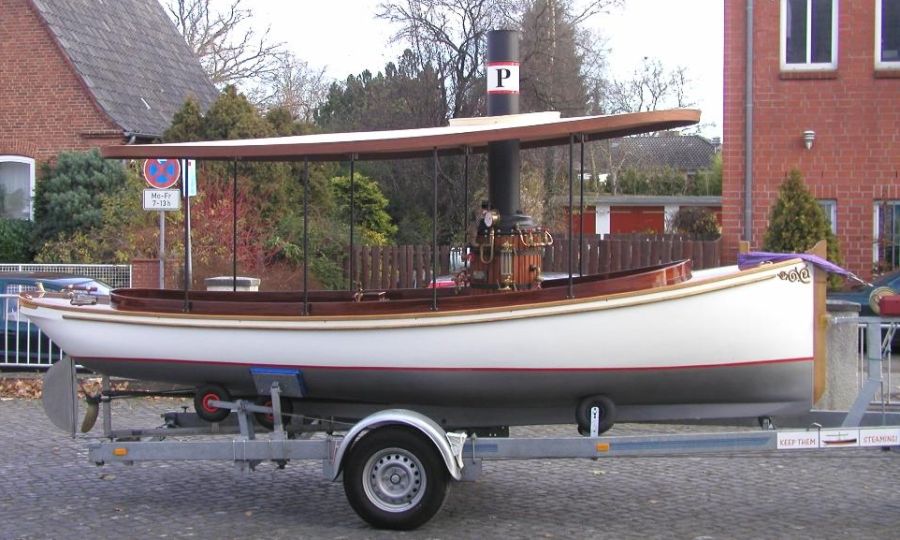

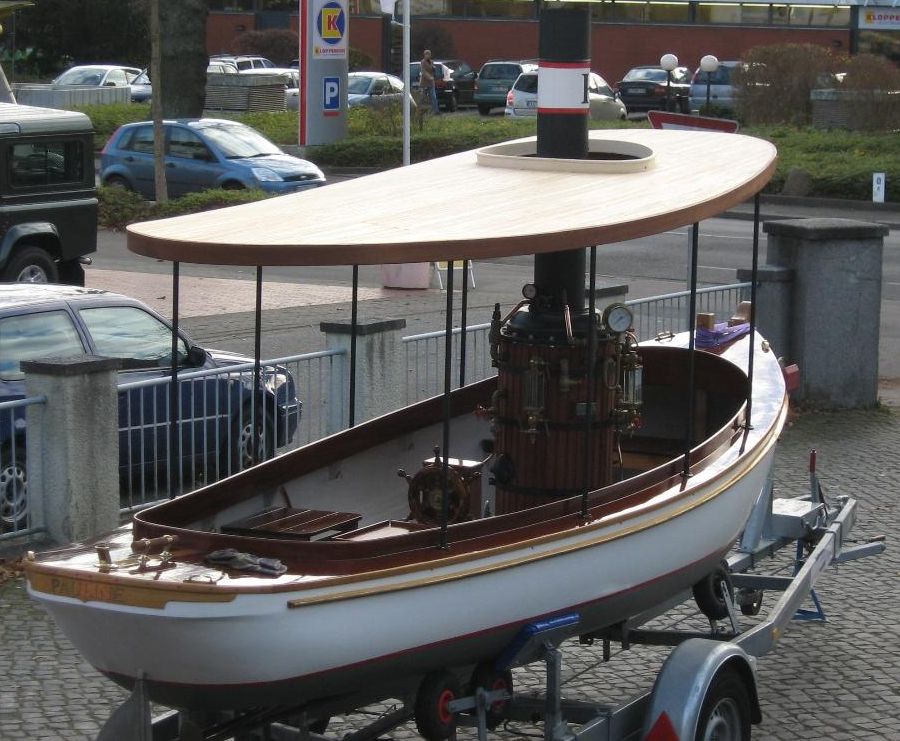

Pauline has got a canopy in 2008
Picture 8

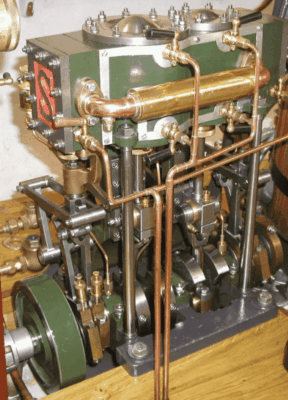

The animated Gif of Paulines engine has a size of 1,8 MB - so it can take a while to download it.
Picture 9
Picture 10
Picture 11

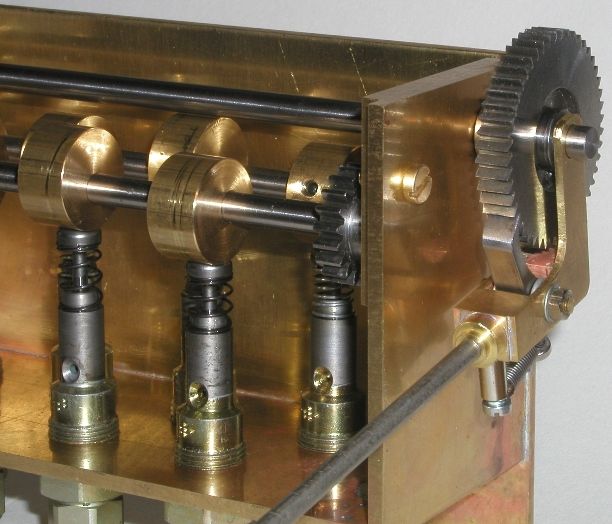

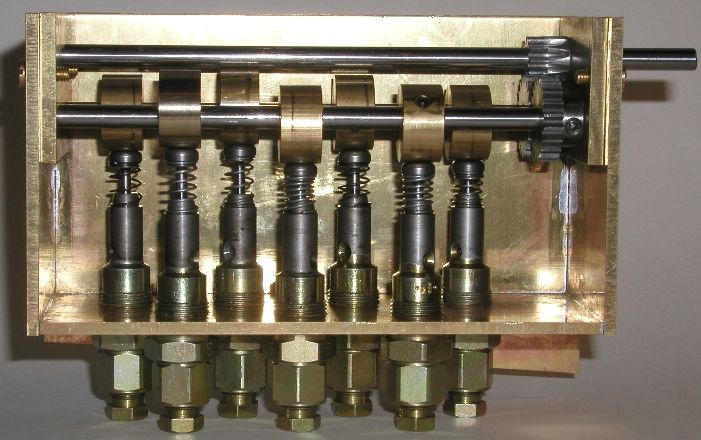

Oilpump for Pauline
Picture 12
The pump will be driven by the pump beam.
Picture 13

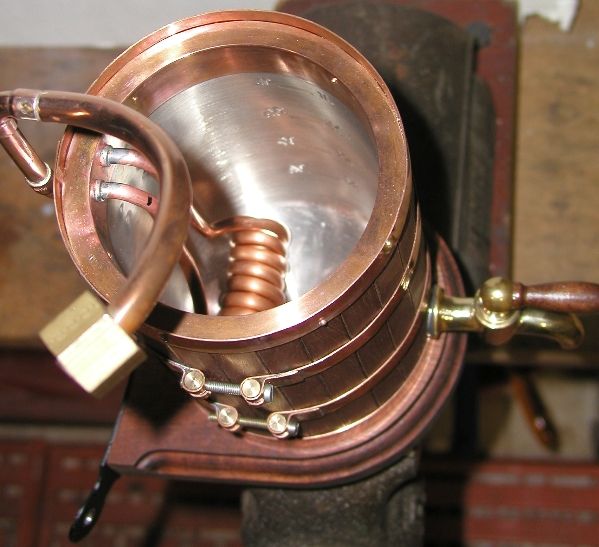

Steam heated tee kettle
Picture 14
First release of this page: 04.08.2006. last update: 20.02.2011.
